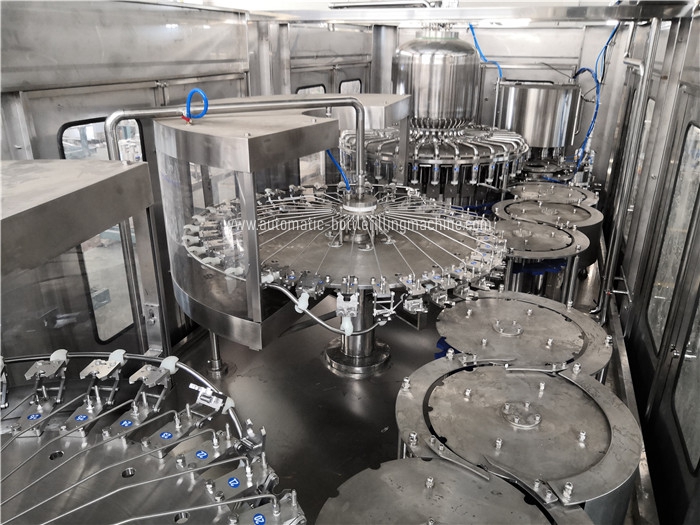

Automatic Bottle Filling Machine, Tea Mango/ Pineapple Juice Making Machine
This machine combines rinser filler capper in one unit, can fill all juice,
water, tea drink, vinegar, and other still beverage,
it can work different size bottle, from 200ml to 2000ml.
Rinsing
-Rotative rinsing turret one treatment, fixed nozzles, with grippers. -The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip. -After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling
-The starwheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design. -Product bowl is to reduce the loss of heat. -If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Capping
-Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles -The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. -The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
RCGF32-32-32-10
| Model | RCGF32-32-10 |
| Capacity | 12000-15000bph (500ml PET bottle) |
| Suitable bottle | Polyester bottle, PET bottle |
| Filling materail | Fruit juice, tea, coffee, other non-carbonated beverage |
| Bottle Height | 150-310mm |
| Bottle Diameter | 40-108mm |
| Filling Temperature | ambient |
| Filling Technology | gravity filling |
| Applications | purified water and mineral water |
| Power supply | 380V 50Hz 3Phases or customized |
| Total power | 9.18KW |
| Dimension | 3600*2800*2200mm |
| Weight | 5500kg |
FAQ
We are a manufacturer.
we have been certificated by the famous cercification authority.
we have been in beverage packing more than 13 years.
we can help you to start a new company in beverage making.
we make all of our customers be satisfied with the machine and our service.
we will install the machine for you ,and train your employees to use the machine well.
we will provide one year warranty with free spare parts.
Any question about this machine or our factory ,contact with us please,sincere service for you .we will send you more pictures and video about this machine,and welcome to visit our factory to see the machine running in the factory.
